Grainfather G30v3 + Counterflow Chiller (NZ/AU)

$1,099.00

$1,099.00 ~~$1,099.00~~

Tax included. Shipping calculated at checkout.

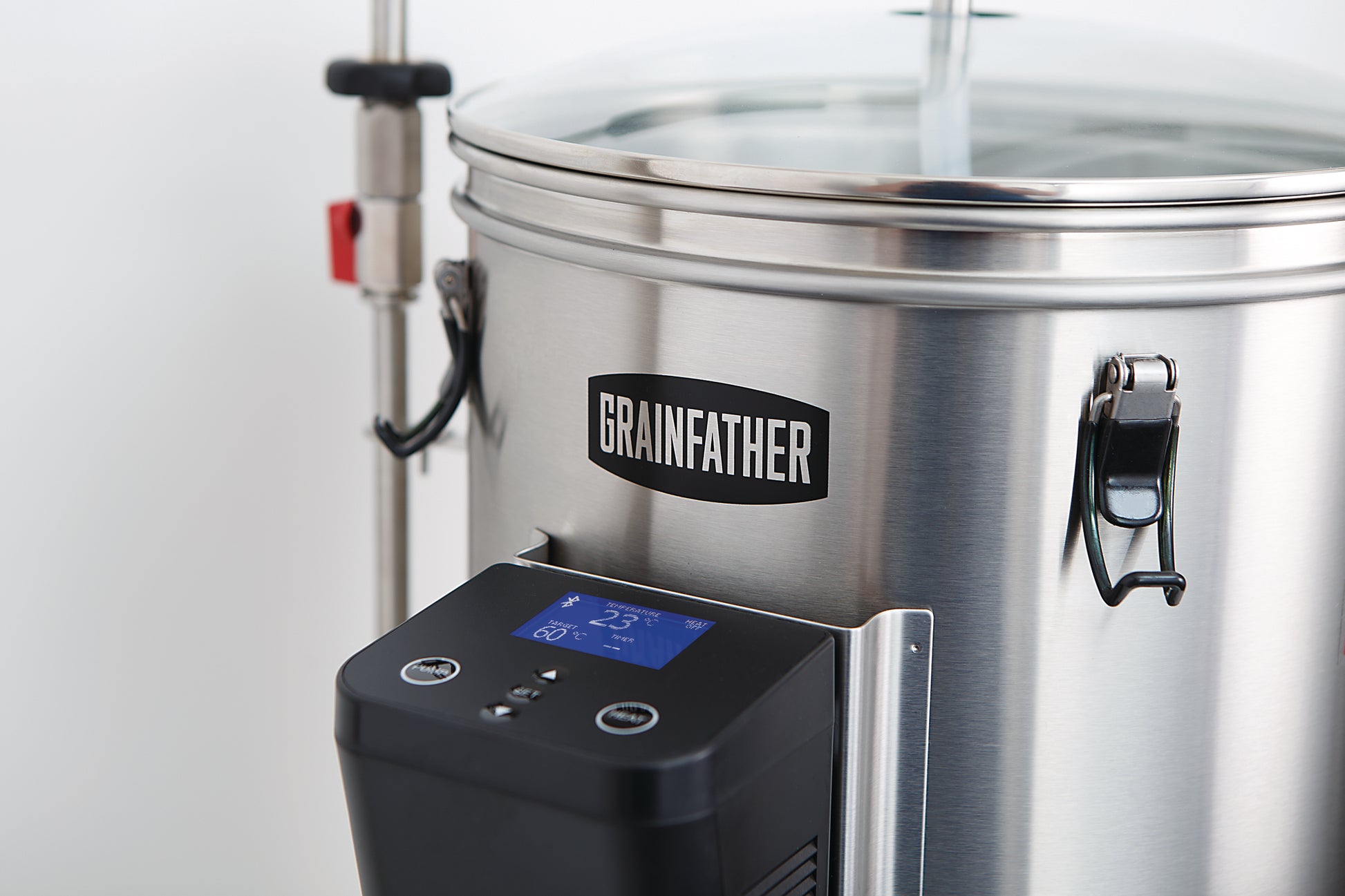

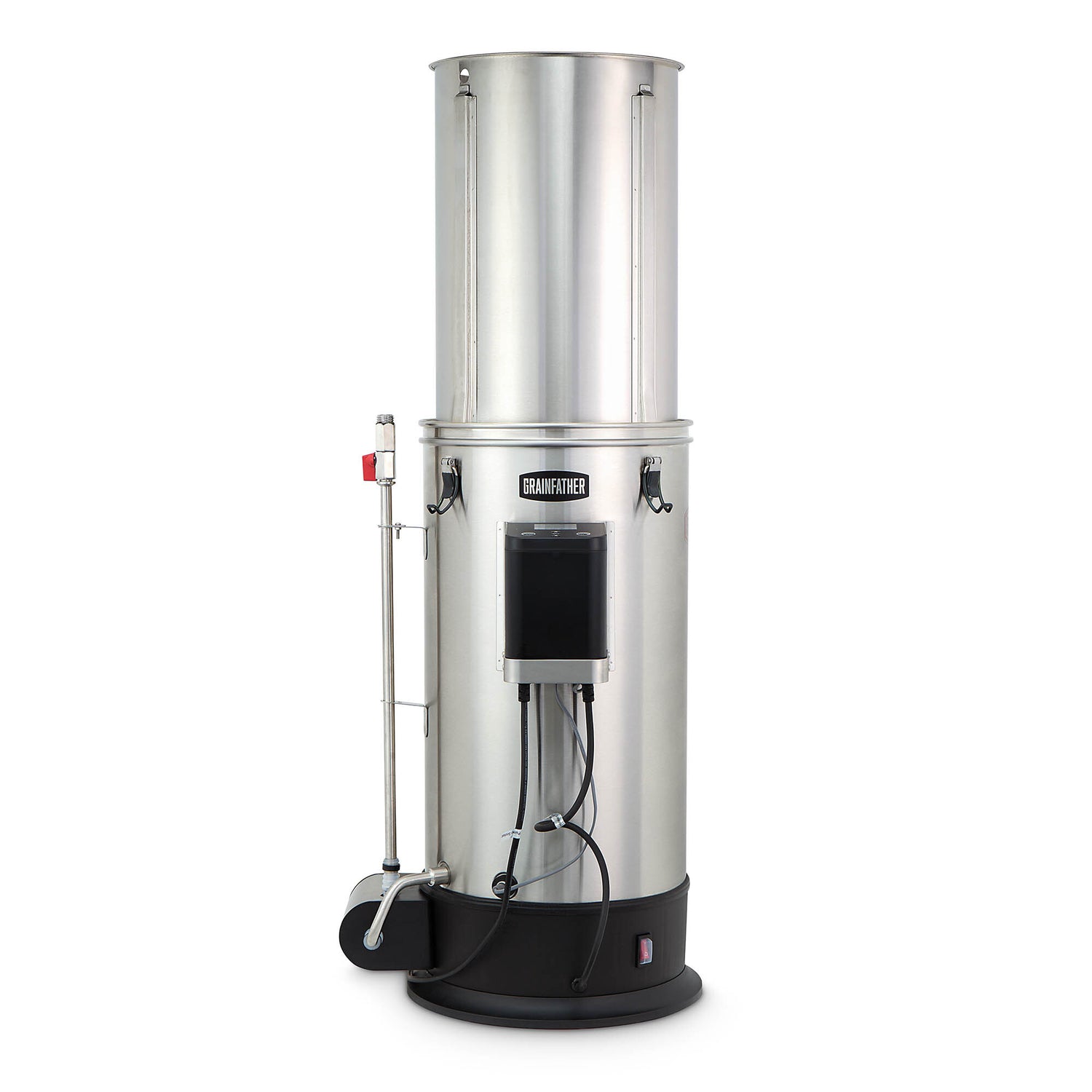

The Grainfather G30³ is a brewhouse brewing system that handles the hot side of the all-grain brewing process. This unit has the ability to produce up to 25L (7 US Gal) of wort from one brew. This device can connect to your mobile device to the smart controller with built-in Bluetooth control via the Grainfather App, for step-by-step guides to the brewing process and access to 1000s of recipes.

The Grainfather Counterflow Chiller is used after boiling the wort to cool it down to fermentation temperature. The Counterflow Chiller does this by acting as a heat exchanger between the wort andthe water from your tap as you transfer from your boil kettle to your fermenter. Because this is a one-step process of transferring and cooling, it is more efficient and more sanitary than immersion chillers.

SKU: 11403K-RRPAUD

In stock

Features

G30v3:

Sleek 304 grade stainless steel body
Manage your brew day from your mobile device via Bluetooth using the Grainfather App
Get a more reliable connection between your G30v3 controller and the Grainfather App on your smartphone with the GCAST Bluetooth Wi-Fi Bridge (available separately)
A robust magnetic drive pump for maximum brewing efficiencies

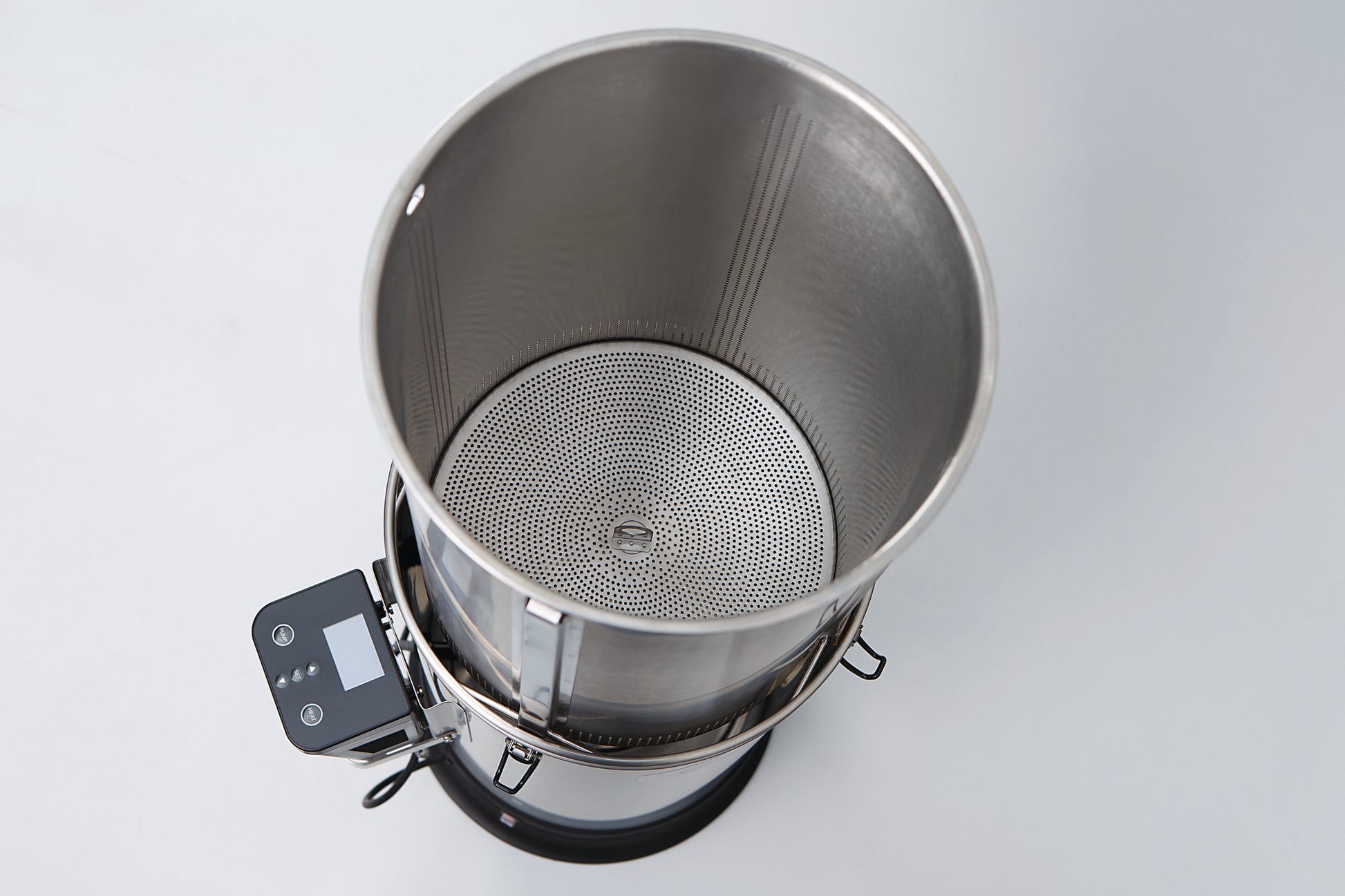

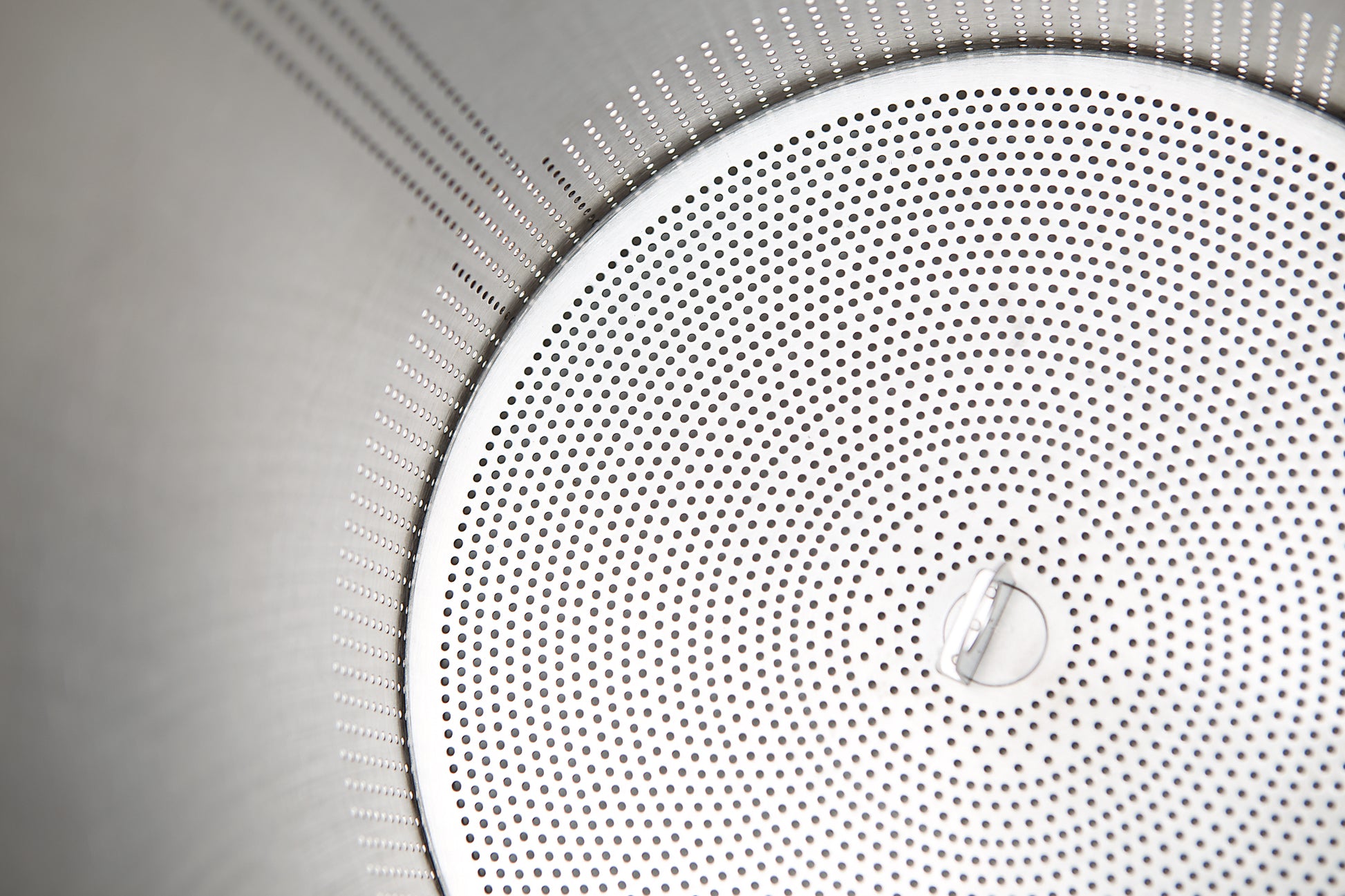

Perforated grain basket negates the need for a top plate or additional pipework
Auto reset switch avoids the need to get underneath the unit should an unexpected trip occur
Efficient and sanitary brew transfer with the Counterflow Chiller (available separately)
Unlock distilling capabilities with the Still Spirits Alembic Dome & Condenser (available separately)
Backed by a 3-year warranty

Counterflow Chiller:

One step transferring and cooling
Fast cooling time to within 3C of source water temperature.
More sanitary transferring
Copper inner coil for high heat exchange
Compatible with a range of brewing systems

Specifications

G30v3:

SIZE:

Unit Size- 685 x 386mm (27 x 15’’)
Packaged Size- 460 x 490 x 760 mm
Diameter- Inside to Inside- 295mm. Outer lip to Outer Lip- 310 mm

WEIGHT:

Unit Weight- 14.6kg (32lb)
Packaged Weight- 21kg

STAINLESS STEEL THICKNESS:

Boiler:0.5mm (0.02")
Grain Basket 0.6mm (0.02")

MAX PREBOIL VOLUME:

30L (8 US Gal)

BATCH VOLUME:

Max: 25L (7 US Gal)
Min: 10L (3 US Gal)

GRAIN BILL:

Max: 8kg (18lb)
Min: 1.5kg (3.3lb)

*9kg (20lb) with top plate

POWER:

AU - 2000W, 230V, 50Hz

CONNECTIVITY:

Bluetooth Control only as standard
Upgrade to Wi-Fi compatibility by pairing with our GCAST.

Counterflow Chiller:

Copper inner coil
Colour-coded hoses for inlet and outlet water.
Red and Blue hose specification: ID: 8mm
OD: 10mm 1.5m in length.
1m silicone hose- ID: 10mm ~ 3/8
OD: 11.5-12.5
Cooling performance- +5°C (+10°F) from cooling tap water temperature at a flow rate of 3 L (0.8 US Gal) per min.

PUMP: NZ/AU/UK/EU

Power: 6W
Heat rating: 100°C
Max unit ow rate: 11 L/min
Voltage: 230V
Frequency: 50Hz

What's Included

Grainfather G30v3

Bluetooth controller
NEW perforated grain basket
Grain plate
Lifting bar
Glass lid
Recirculation pipe
Filter
Hose fittings
Built-in pump

Counterflow Chiller

Water inlet and outlet hosing
Wort inlet and outlet hosing
G30 connector
9mm right angle hose barb connector for G40, G70 and other brew systems
Tap adapter set for connection to garden hoses and most faucets
